Single-shaft shredder
This machine is a newly developed shredder by our company, featuring a densely arranged rotary blade structure and a hydraulic pusher feeding system for forced material input. It offers strong shredding capacity, stable performance, high efficiency, low temperature rise, and convenient operation. Equipped with multiple safety switches, it ensures reliable operation.
Plastic Extrusion Equipment
Plastic Recycling Equipment
Introduction
It is suitable for shredding tough materials such as plastics, rubber, fibers, paper, wood, electronic components, and cables, as well as solid waste like sprues, rubber lumps, PET bottles, cardboard, circuit boards, wood, and plastic barrels. Users can select different models according to material size and output requirements.
For especially hard materials, such as nylon, ABS, PC, and other high-strength engineering plastics, customers should specify requirements in advance. The equipment is controlled by a Siemens PLC system, enabling automatic forward and reverse operation.
Working Principle

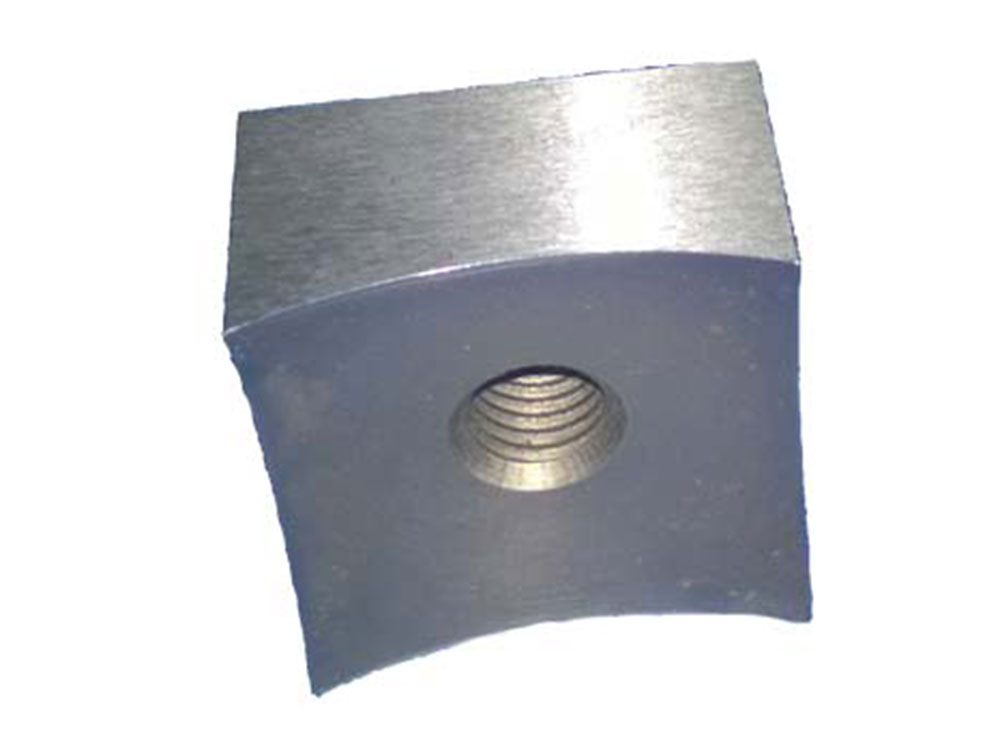

Materials enter the shredding chamber through the feeding system. Inside the chamber, rotary blades mounted on the shaft perform shredding. The hydraulic pusher presses the material against the blades, where it is torn, squeezed, and sheared into smaller pieces. The shredded material is then discharged through the screen holes.
Main Technical Parameters
| Model | SS2260 | SS4060 | SS4080 | SS40100 | SS40120 | SS40150 | SS48150 |
|---|---|---|---|---|---|---|---|
| Main Shaft Length (mm) | 600 | 600 | 800 | 1000 | 1200 | 1500 | 1500 |
| Hydraulic Stroke (mm) | 500 | 700 | 850 | 850 | 950 | 950 | 950 |
| Main Shaft Diameter (mm) | φ220 | φ400 | φ400 | φ400 | φ400 | φ400 | φ480 |
| Moving Blades (pcs) | 26 | 34 | 46 | 58 | 70 | 88 | 132 |
| Main Motor Power (kW) | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 |
| Hydraulic Power (kW) | 2.2 | 3.75 | 3.75 | 3.75 | 5.5 | 5.5 | 5.5 |
| Weight (kg) | 1550 | 3000 | 3600 | 4000 | 5000 | 6200 | 8000 |
